WAYJUN 3000V isolation two wire 4-20mA loop powered RTD temperature signal transmitter DIN35 signal converter

Features:
>> Input: Pt100 (-200 ~ +600 deg.C) (scope optional)
Also can choose Pt1000/Cu50/Pt10/Cu100
>> Output: two-wire 4-20mA signal
>> Accuracy: 0.2 (FSR%)
>> Containing linear and long-term compensation
>> 4-20mA loop powered,no need power supply
>> Input/output Isolation voltage: 3000VDC (1mA, 60S)
>> Two isolation: input/output
>> Installation: DIN35 rail mounted
>> Industrial temperature range: - 40 ~ + 85 deg.C
>> Size: 79.0x69.5x25.0mm
Product description:
WAYJUN two wires 4-20mA temperature transmitters are widely used in Pt100/PT1000/PT10/Cu50/Cu100 temperature sensor isolated and transmit, in industry mainly used for measuring the temperature of -200 ~ +600 Deg.C. The transmitter has linear and long-term compensation, the factory in accordance with national standard Pt100 indexing table calibration, fully meets 0.2accuracy. Input, output, and auxiliary power supply is completely isolated (three isolation), can withstand 2500VDC isolation voltage. Products using international standards for rail mounting DIN35, small size, high precision, stable performance, cost-effective, can be widely used in petroleum, chemical, power, instrumentation and industrial control industries.
Product Listing:

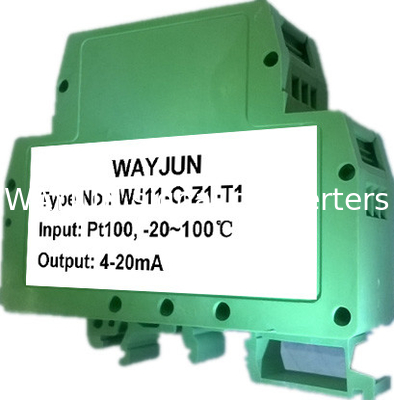

WJ11- G/F - Z□ - T□

						Signal Isolators & Conditioners
General parameters:
>> Accuracy		-------0.2% (relative to temperature)
>> Input -------		three- wire, four-wire or two-wire RTD signal, you can choose Pt100, Pt1000, Pt10, Cu50, Cu100 thermal
resistance.(Need to select a temperature range and a output signal)
>> Output -------		twowires 4-20mA current signal
>> Loop voltage----------		wide loop powered voltage range		isolation:12~30VDC
				Non-isolation:9~36VDC
>> Response time -------		≤ 100mS
>> Auxiliary power -------		no need,4-20mA loop powered
>> Power -------
>> Temperature drift -------		50ppm / ℃ (typical)
>> Isolation -------		input /output (if isolation)
>> Isolation voltage -------		3000VDC, 1 minute, leakage current (1mA)
>> Impact resistance voltage			------- 3KV, 1.2/50us (peak value)
>> Operating Temperature --------			-40 to +85℃
>> Storage Temperature --------			-40 ~ +85℃
>> Operating-------Humidity			10 ~ 90% (no condensation)
>> Storage Humidity -------		10 ~ 95% (no condensation)

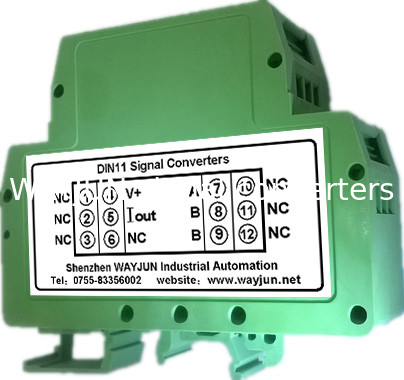

Products Connecting Diagram:
Pin			Function		Pin			Function
1			No PIN		7		A	RTD signal Input A
2			No PIN		8		B	RTD signal Input B
3			No PIN		9		B	RTD signal Input B
4			Loop current power +		10		NC	No PIN
5			Loop current output signal -		11		NC	No PIN
6			No PIN		12		NC	No PIN
