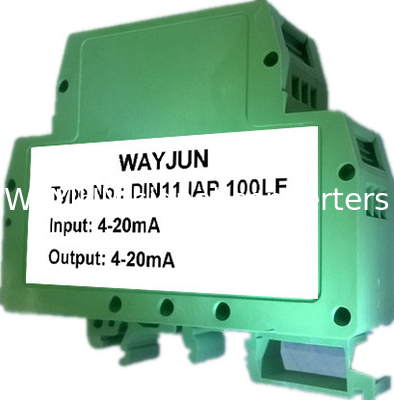

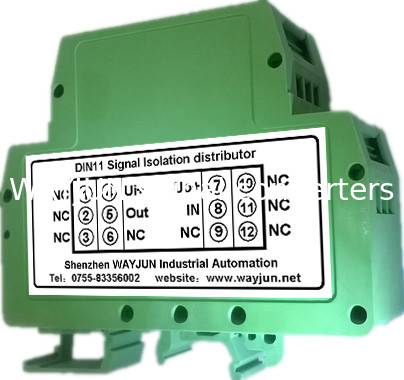

WAYJUN 3000VDC isolation rail Loop-Powered 4-20mA Signal Isolator Green DIN35 signal converter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Green | Isolation: | 3000VDC |
|---|---|---|---|
| Mounting: | DIN35 Rail |
Clients can order from our website online by Paypal.
Features:
>>Current loop-powered
>>High linearity (0.2% F.S.)
>>3000VDC isolation(4-20mA input/output)
>>Frequency response(signal bandwidth): 50Hz(Io=20mA)
>>Operating temperature range: -45~85deg.C
>>Standard DIN35 rail mounting(size:69.5x79.0x25.0mm)
>>Loop power supply:10-30V
Application:
>>PLC,DCS analog signal isolation,collecting
>>4-20mA signal isolation and transmission
>>Ground isolation and interference suppression
>>Signal long-term distortion-free transmission
>>Instrument signal transceiver and control
>>Power control, medical equipment isolation barrier
Product Listing:
| Type No. | Input | Power supply | Output |
| DIN11-IAP100LF | 4-20ma | No | 4-20ma |
General Parameter:
Note: All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise specified.
Parameter Condition Min Typ. Max Unit
Isolation Input/output: 3000VDC (1 min., leak current<1mA, Humidity<70%)
Temperature Drift 0.0035%F.S./℃ (-25℃~+71 ℃)
Output Load capability RL≤(Us–5)/0.02 (Us: loop power supply)
Zero offset 0.3%F.S.
Gain Error 0.3%F.S.
Insulation resistance 100MΩ,500VDC ( Between input and output)
Input Signal 4-20mA
Input Over-voltage ≤30mA(over-current Protection)
Input Voltage Drop-out Type: 5V(@input = 20mA)
Output Signal 4-20mA
Output Load Regulation 0.05%F.S./100Ω
Operation temperature -25°C ~ +71°C
Storage temperature -50°C ~ +105°C
Download the Datasheet :http://www.wayjun.net/Datasheet/Signal/DIN%20rail%20loop%20powered%204-20ma%20converter.pdf
