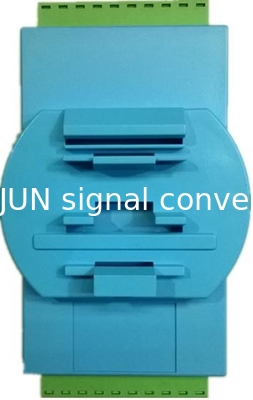

WAYJUN 3000V isolation current/Voltage signal isolated splitter(one in four out) DIN35 signal converter green

WAYJUN this product uses advanced isolated technology, quarantine inspection / monitoring DC voltage signal, small size,low power,high accuracy. Input/output/auxiliary power supply three isolation.Widely used in such fields as electricity, chemicals, petroleum, industrial and automatic control.
Selection Guide:
DIN14 IAP - V(A)□ - P□ - V/A□

Samples:
1.Input:0-5V Power Supply:24V Output:four 4-20mA Type No.: DIN14 IAP V1-P1-A4
2.Input:0-10V Power Supply:24V Output:four 0-10V Type No.: DIN14 IAP V2-P1-V2
3.Input:4-20mA Power Supply:24V Output:four 4-20mA Type No.: DIN14 IAP A4-P1-A4

4-20mA/0-10V/0-5V signal isolated splitter
Features:
>>One input four output
>>Accuracy ---------- 0.1%, 0.2%
>>Isolation ---------- signal input / output / auxiliary power :3000VDC
>>One standard signal input: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
>>Four standard output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
>>Dimensions: 106.7x79.0x25.0mm
>>Auxiliary power supply---------- DC5V(± 10%), 12V,15V, 24V(8-32VDC)
>>Insulation resistance ---------- ≥ 20MΩ
>>Operating Temperature ----------- -25 to +70 ° C
>>Pressure ---------- signal input / output / auxiliary power
>>Operating Humidity ---------- 10 ~ 90% (no condensation)
>>Storage Temperature ----------- -45 ~ +80 ℃
>>Impulse withstand voltage ---------- 3KV, 1.2/50us (peak value)
>>Storage humidity ---------- 10 ~ 95% (no condensation)
>>Size:120x70x43mm

more details,please check this link:http://www.wayjun.net/Datasheet/Signal/DIN14%20signal%20isolated%20splitter.pdf
