1ms DIN35 Rail Industrial Green Digital I/O Card

Product Description:

Function Description:

The WJ69 remote I/O module has the capability to measure eight-channel encoder signals. Additionally, it can also be configured as a 16-channel independent counter or DI state measurement.

Signal Input:

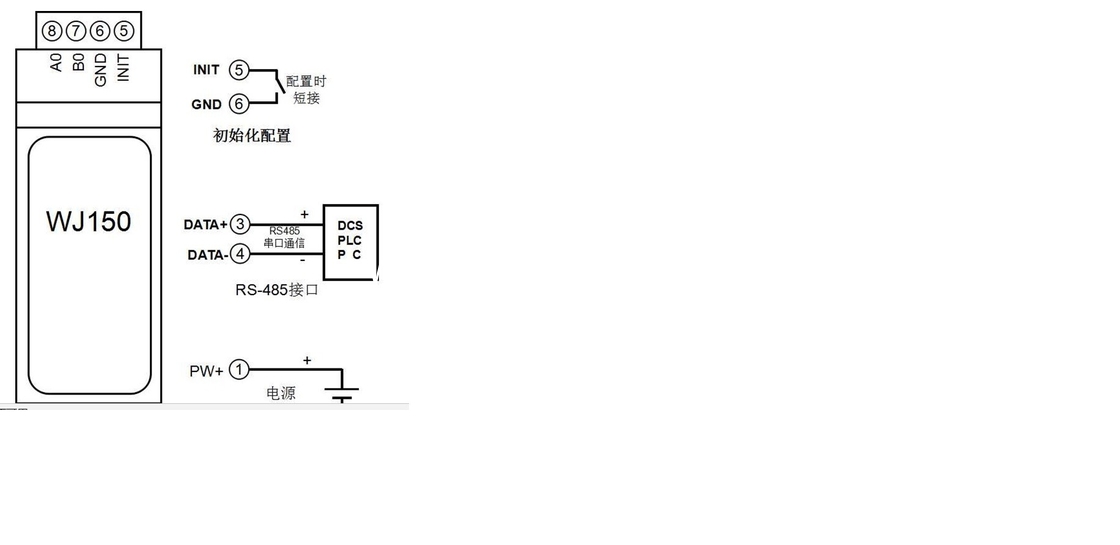

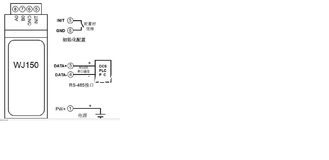

The module can accommodate an 8-channel encoder signal input or a 16-channel independent counter that can be connected to dry or wet contacts. The wiring diagram section provides detailed information regarding this.

Communication Protocol:

This module supports two communication protocols: character protocol defined by the command set and the MODBUS RTU communication protocol. Communication interface includes 1 standard RS-485 or 1 standard RS-232, as specified on ordering and selection. Furthermore, the module automatically recognizes the communication protocol, allows a network communication with various brands of PLC, RTU or computer monitoring systems.

Data Format:

The data format is 10 bits, including 1 start bit, 8 data bits, and 1 stop bit, with no verification.

Features:

A brief summary of the features include a number of functionalities friendly to developers. Firstly, its encoder signal can be decoded and converted into standard MODBUS RTU protocol, which is a commonly used industrial protocol for communication. Secondly, it can be used for encoder counter or speed measurement, and supports up to 8 encoders to count at the same time, ensuring measurement accuracy. Thirdly, it comes with 16 independent DI high-speed counters and the encoder count value supports automatic saving when there is a power loss.

The module comes with DI input / power supply isolation capability of 3000VDC and a wide power supply range of 8 ~ 32VDC, making it flexible for different application environments. It also features an RS-485/232 interface for clearing and setting the count value for easier operation. Additionally, it is highly reliable, with easy programming and application. Finally, the module can be mounted on a standard DIN35 rail, making centralized wiring a breeze. Users can program the module address, baud rate, etc, according to their application needs.

Technical Parameters:

The communication interface has been deliberately designed to include certain features in order to ensure high anti-interference. This includes an impressive ±15KV ESD protection ensuring the interface can sustain electrical discharges, plus the added bonus of a communication response time of less than 100mS.

To guarantee further anti-interference measures, the checksum can be easily set up and adjusted to meet any requirements needed. Furthermore, the internal module includes transient suppression diodes that serve to squelch surge pulses and protect the module from harmful damage. Additionally, the digital filter built into the module is capable of suppressing the power frequency interference from the power grid, enhancing the overall quality of the interface and protecting it from outside sources of interference.

Applications:

The module address, baud rate, and other settings can all be programmed by the user.

Some of the specific settings that can be programmed include the module address, which is necessary for communicating with multiple modules. The baud rate, which determines the speed at which data is transmitted, can also be programmed according to the user's needs.

Other programmable settings may include parameters such as transmission mode, encryption settings, and power management options. These allow the user to customize the module's behavior to their specific use case and improve overall efficiency and reliability.

Customization:

At WAYJUN, we offer top-notch product customization services for our Digital I/O Modules, model number WJ69-485. Our modules are made in Shenzhen, ensuring high-quality standards. With dimensions of 120 x 70 x 43 mm and weighing only 100g, these modules are compact yet efficient. Our modules come in a vibrant green color and have a response time of 1ms.

Our Digital I/O Modules are compatible with Modbus RTU, making it possible for you to integrate them into your existing systems with ease. Our team of experts can customize the product to your requirements, ensuring that it meets your specific needs. Contact us today to learn more about our product customization services.
